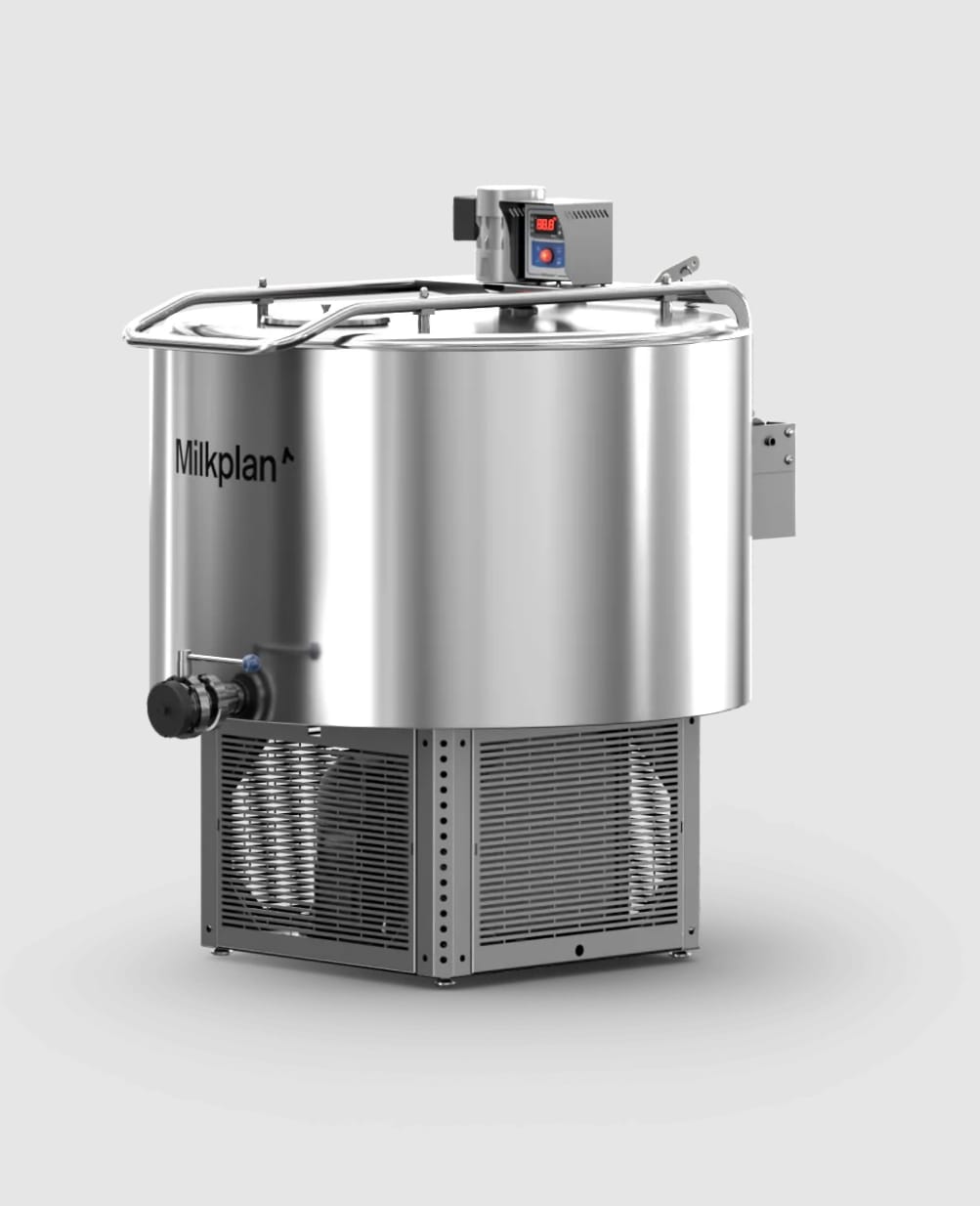

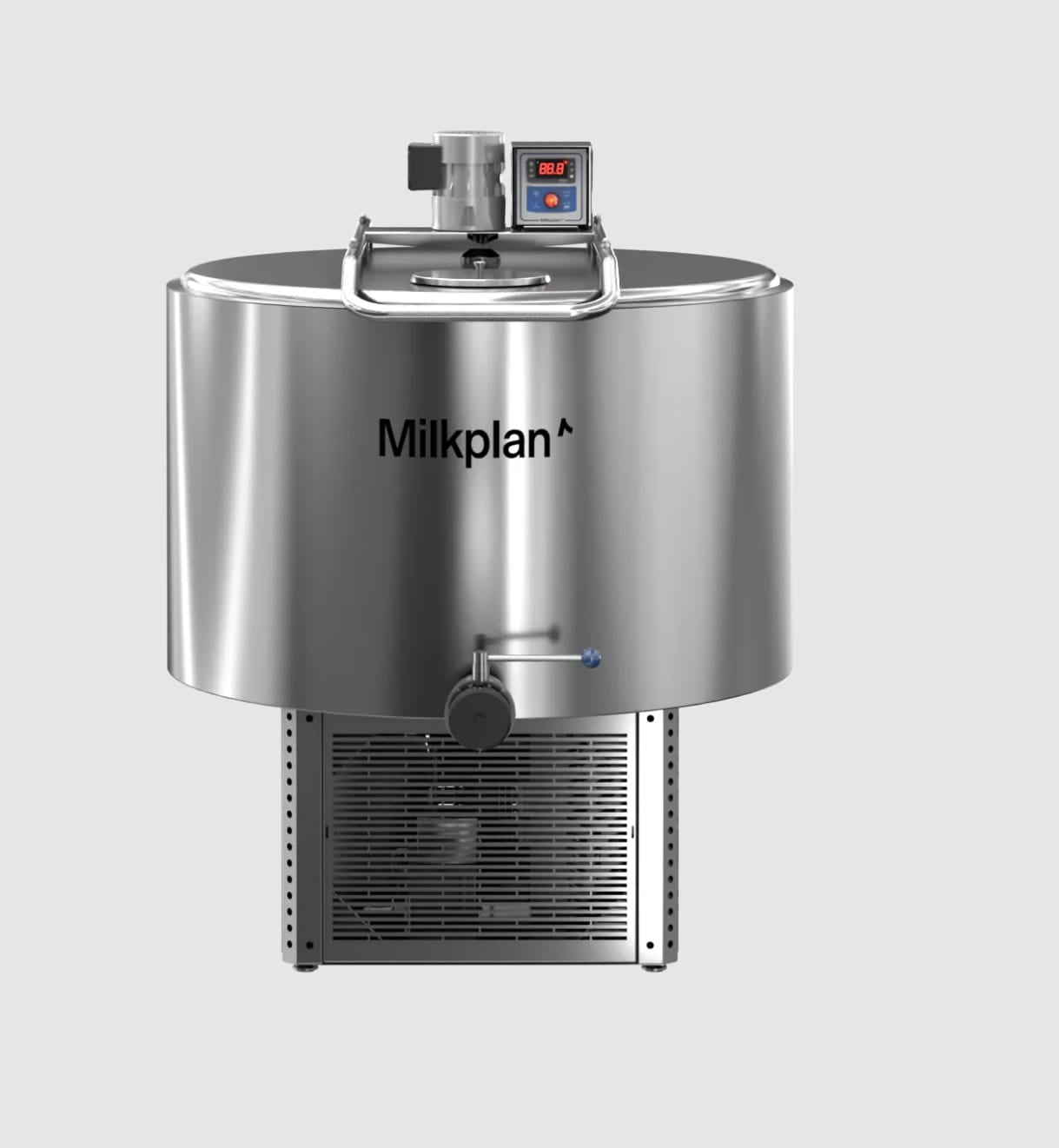

The MP Vertitank open-type milk cooling tank offers fast and stable cooling, ensuring maximum milk quality preservation. Thanks to its careful design and high-quality construction materials, it guarantees long-term operation and energy savings.
This specific model has a 200 L milk tank capacity and comes with a fully opening lid and an attached cooling compressor. This unit is ideal for cooling smaller amounts of milk or cream, especially great for colony kitchens!
Dimensions (MVP200)
| Α | Α1 | Α2 | Β | Β1 | Β2 | Η | Η1 | Η2 | Η3 |
|---|---|---|---|---|---|---|---|---|---|
| 1030 | 518 | 574 | 890 | 518 | 574 | 1465 | 1015 | 1240 | 438 |
The MP Vertitank is available in various capacities and adapts to the needs of each dairy or milk processing unit. Tanks from 50 L to 300 L are suitable mainly for sheep and goat farming units and serve to collect milk from 2 or 4 milkings.
Cooling Unit
Available in versions of 2 or 4 milking for normal or high ambient temperatures (tropical and supertropical) and are available with European -or US- made Tecumseh, Maneurop, Copeland, or Embraco compressors depending on the customer's needs.
Evaporator
The tanks are equipped with a direct expansion evaporator welded with the most modern laser technology and the bottom has the appropriate slope to ensure the complete evacuation of the tank in compliance with international standards (ISO 5708). The installation of the evaporator in the tank, the design, the appropriate choice of materials and the diamond weld pattern, all serve to ensure direct dissipation of the milk's heat, avoiding the formation of ice particles, minimizing energy loss and achieving zero coolant leakage.
Thermal insulation
The tank insulation with environmentally-friendly two components polyurethane foam allows preservation of milk to the desired temperature ensuring minimum energy consumption. The insulation thickness is 45mm at the side walls and about 90mm at the base of the tank.
Dipstick
To measure the level of milk and to calculate the amount of milk in the tank, all MP Vertitank series models are equipped with a stainless steel measuring dipstick and a conversion table in liters.
Easy cleaning
The motor, the electronic control panel, and the lifting handle of the tank lid (models above 100 L) are elevated, allowing thorough cleaning of the lid and preventing dirt accumulation.
Electronic control panel
The electronic control panel for the cooling and agitation of the milk has an easy-to-read 3-digit display allowing easy operation of the cooling tank with the touch of a single button. It is based on a Dixell electronic controller -suitable for milk cooling systems- with fully adjustable parameters and it is equipped with a temperature sensor (NTC), IP68 sealed and resistant up to 110°C. The panel is IP55 certified and the electronic circuits are protected against the ingress of water or water vapor.
Perforated cover of the cooling unit
The stainless steel protective perforated cover prevents the entry of small animals and dirt in the cooling unit of the tank ensuring its smooth operation. Its easy removal allows direct access to the cooling unit for maintenance and repair. It is worth mentioning that for the perforated enclosed metal base of the cooling tank the company has obtained a patent (no. 1004080).
Retaining springs
Stainless steel springs (from 1 to 4 depending on the model) provide easy lifting and holding of the tank lid in the open position while also offering high resistance to stress from daily use (models above 200lt).
Milk inlet opening
The lid of the cooling tank has a Φ200mm diameter opening (two openings on models 2,000lt and 2,500lt) which allows easy inspection of the content and filling of the tank. It is covered by a stainless steel lid held in place by a hinge.
Milk outlet
MP Vertitank milk cooling tanks are available with a DN50, SMS51 or Triclamp type milk outlet and are equipped with a stainless steel butterfly valve. In the case of the DN50 type valve, a food grade plastic cap is also included.
Agitation motor
MP Vertitank cooling tanks are equipped with agitation motors by the French company Sirem which rotate at 30 rpm to prevent milk foaming. The motors are equipped with an integrated gravity switch which allows milk agitation to stop automatically when the tank lid is lifted.
Lid with a one-piece agitator
The robust lid without screws on the inside and the one-piece agitator of the tanks without joints ensure perfect cleaning and minimize the risk of milk contamination.
Cooling tank rim
The rim of the tanks is manufactured according to ISO 5708 / EN 13732 standard.
Adjustable support legs
All models of MP Vertitank series have adjustable support legs, so as absolute leveling is attained even on uneven floors which is a prerequisite for correct measurement of the milk.
